The Z 7II and Z 6II. Nikon's?next generation?full-frame mirrorless cameras. offer underwater shooters the same legendary Nikon sensors with improved autofocus and continuous shooting speed performance. The NA-Z7II supports both the Z 7II and Z 6II models and features the larger-bore M28 bulkhead that supports HDMI 2.0 connections needed for the Atomos Ninja V Recorder/Monitor.
Technical Specifications
| Dimensions | 360mm(W) x 200mm(H) x 160mm(D) |
| Weight In Air | 3.1kg |
| Weight In Water | -0.07kg (with camera and battery) |
| Depth Rating | 100m |
| Port System | N120 |
This item is non-returnable. non-refundable. non-cancellable. and may be subject to extended lead times as it is manufactured on demand. ?We always do our best to meet trip deadlines so please advise us if you have a trip coming up!
split

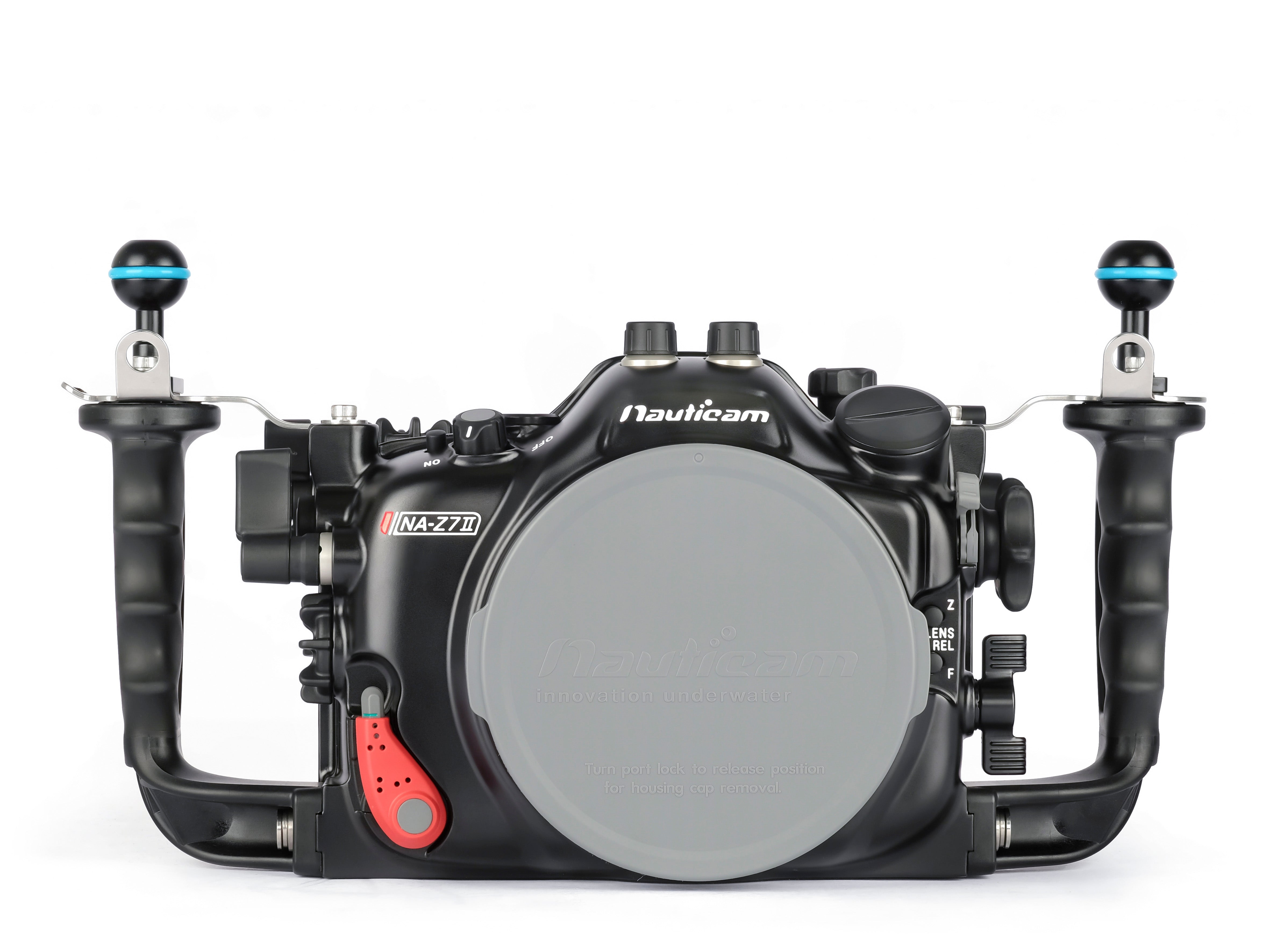

The Nauticam NA-Z7II Underwater Housing
The NA-Z7II underwater housing follows suit with?Nauticam's drive for innovation. Both the?Nikon Z 6II and Z 7II present shooters with the ability to use both the available legacy?F Mount lenses via?the FTZ adapter in addition to their native?Z Mount optics.? To support both the legacy and native lenses. Nauticam has integrated the NA-Z7II into the N120 port system.??This is critical as the new Z mount lenses are being phased in over the next few years. The Nauticam NA-Z7II housing features two lens release buttons that correspond to either F or Z mount lenses. When switching between F and Z mount lenses. the camera must be removed from the housing to remove the adapter. When working within either the F or Z mount system use the appropriate lens release button to switch lenses without having to remove the camera from the housing. A vacuum system reset switch is located below the tray as well so there is no need to open the rear of the housing during lens or port changes.
?
The NA-Z7II is part of the N120 port system which allows for full support of Nikon F mount lenses with the same ports needed for their application on Nikon SLR housings. As more Z mount lenses become available Nauticam will add supported configurations.
Intelligent Control Placement
Nauticam engineers are obsessed with functionality and this is evident in the location of essential controls. Regardless of where the control is located on the camera. the Nauticam housing puts them where you need them to be underwater. For those switching between photo and video modes. an easily reachable switch is located on the right rear of the housing. The right side double thumb lever. easily reached from the right handle features access to the AF-on and Record buttons respectively. Between the double thumb lever and the multi-stage shutter release is an ISO lever allowing quick changes to sensitivity.
The left double thumb lever accesses the DISP and Playback controls. The Zoom In and Zoom Out controls. located on the right rear of the camera body is relocated to the left side of the housing to a location more familiar to Nauticam housing users.
The switch that allows for switching between the LCD display and the EVF. a crucial and much used control with mirrorless systems is located close to the left handle within easy reach.
Front and rear control dials are readily accessible by the familiar large knurled dials at the right handle. The ergonomic housing handles are rubberized and feature stainless steel stiffening brackets to ensure a stable platform when using large strobes or video lights attached to the pre-installed 1 mounting balls.
Flash Triggering
The NA-Z7II comes with Nauticam's self powered manual flash trigger preinstalled. The flash trigger plugs into the hot-shoe of the camera and uses LED lights recessed into each of the two optical bulkheads to trigger supported underwater flashes when used with the correct fiber optic connection. The flash trigger is powered by coin cell batteries that provide thousands of flashes per battery. The flash trigger can be upgraded to support TTL triggering (PN 26308 TTL Converter for Nikon).
Integrated Vacuum Check and Leak Detection System
The Nauticam vacuum check and leak detection system is shipped with NA-Z7II as standard equipment. Combined with an accessory M16 vacuum valve (PN 25625). this monitoring system provides constant updates on the water tight and safe-to-dive status of the housing. A simple color coded LED lighting system lets the user know that the vacuum is solid. or that the housing is losing vacuum. Leak detection is built into the same circuit. so if there is water intrusion. an audible and visual indication will occur. The Nauticam system is temperature compensated. eliminating false alarms caused by a change in outside temperature. or from a camera heating up on an action packed dive.
Premium Professional Optics

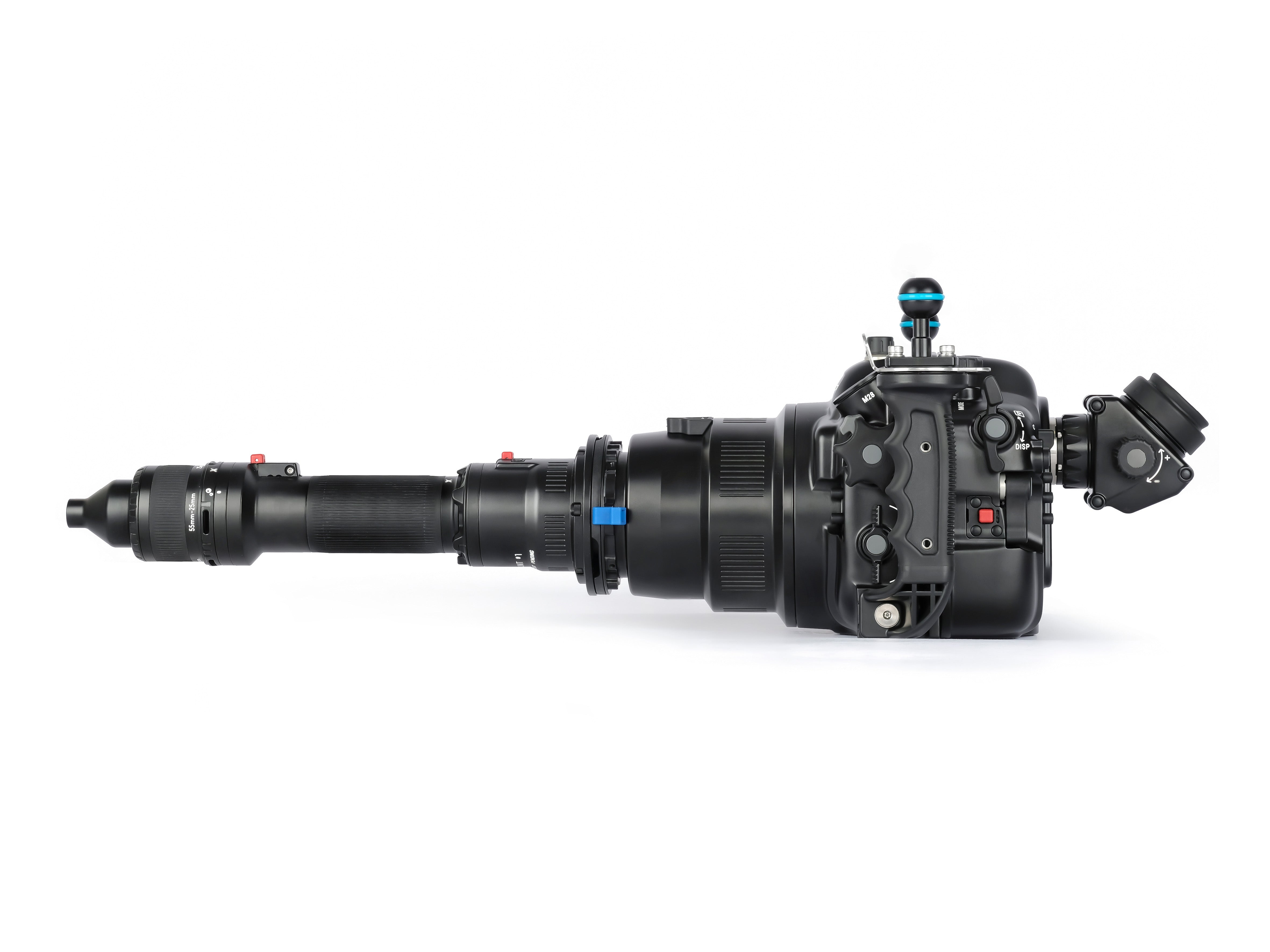

Optical performance is just as necessary as camera performance and this becomes even more critical given the challenges of filming underwater. The Nauticam NA-Z7II uses the same N120 Port System as the previous NA-Z7 which makes for a seamless transition for those upgrading to the II. While this system provides exceptional optical-glass and flat port solutions for a wide variety of?F and Z Mount lenses. the real power of the?Z 6II and Z 7II can be realized using Nauticam's Water Contact Optics. This lineup of dry and wet lenses are conceived using commercial lens-design software to achieve truly unparalleled underwater image quality both for stills and video in both macro and wide-angle situations. The WACP-1 and WACP-2 achieve ultra-wide 130o fields-of-view with reduced distortion over conventional optics while featuring ~0 minimum focus distances. zoom through capabilities and unbeatable corner sharpness at even wide-open apertures such as F5.6. The SMC-1 and SMC-2 macro wet-optics. when used with the?Nikon 105mm f/2.8G VR?macro lens provide 2x and 4x magnification respectively and the SMC-1 actually provides a resulting image with increased contrast and sharpness than the 105mm lens itself can achieve in air without a magnifier.
Resources
User Manual PDF Download:
Nauticam NA-Z7II User Manual Coming Soon
What's In The Box:
- Nauticam NA-Z7II Housing
- 90122 Housing O-ring. lubricant and removal tool
- CR2032 Battery (for vacuum system)
- Padded Travel Case
- Allen Wrench Set
Recommended Accessories:
- 25625?M16 Vacuum Valve II (Pushbutton Release)
- 32201?Nauticam 180 straight viewfinder
- 32203?Nauticam 45 viewfinder
- 26308?TTL Converter for Nikon
- 26216?Universal Fiber Optic Cable
- 85201?0.36x Wide Angle Conversion Port with Aluminum Float Collar (incl. N120 to N100 port adaptor)
- 86201?Macro to Wide Angle Lens 1 (MWL-1) 150 deg. FOV with full frame 60mm macro lens
- 26074?M14 Nikonos 5-pin Bulkhead with Micro Connector for Nikon TTL Converter
- 26075?M14 Ikelite Style Bulkhead with Micro Connector for Nikon TTL Converter
HDMI Recommended Configurations
For HDMI 2.0 Cable System
- 25089?M28 adaptor for HDMI 2.0 Cable
- 25085?M28C1R200-M28A1R170 HDMI 2.0 Cable for NA-Z7V/Z7II and NA-Ninja V

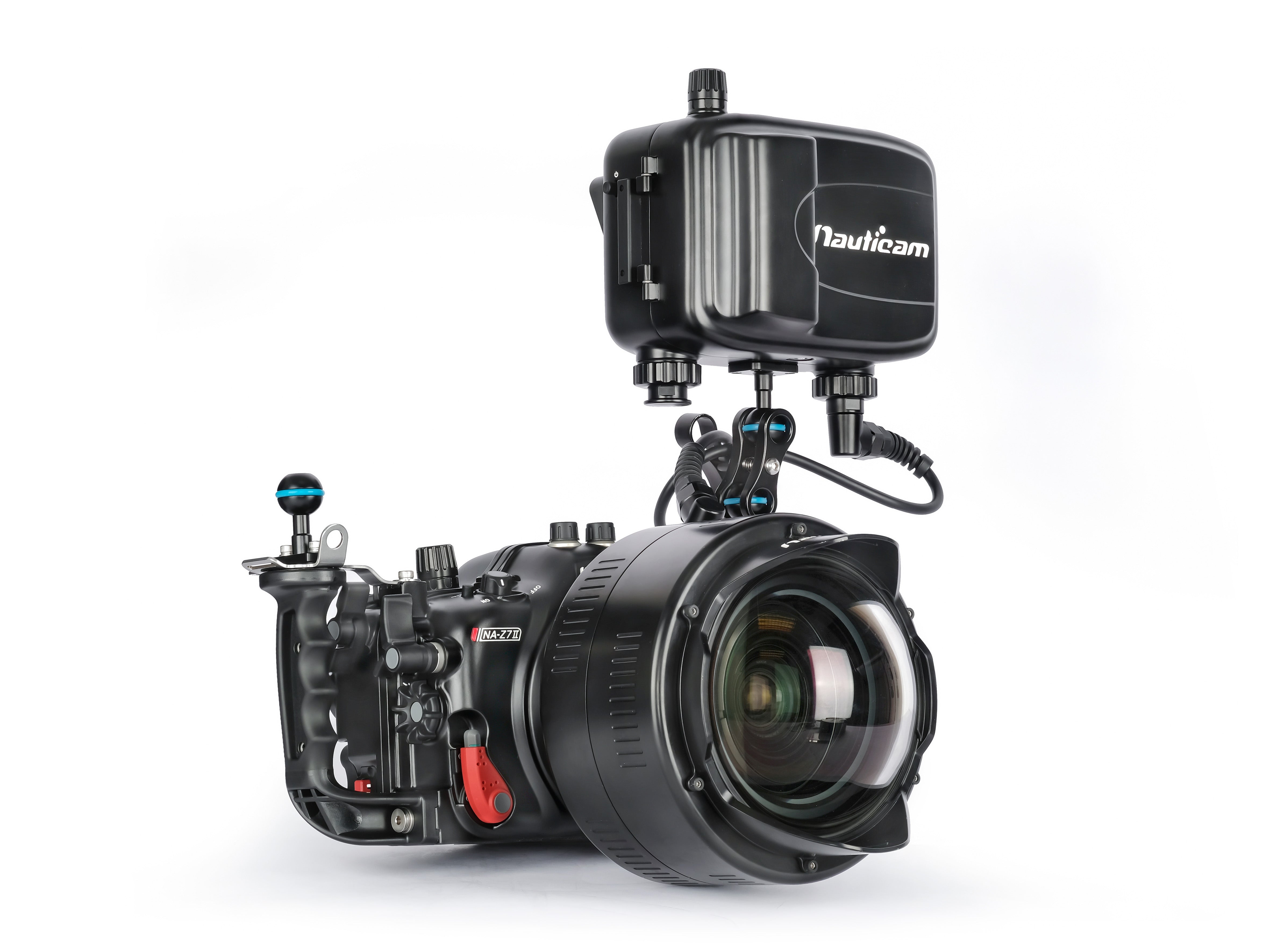

- 17922?Nauticam Atomos Ninja V Housing for Atomos Ninja V 5 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
For HDMI 1.4 Cable System
- 25033?Standard HDMI Cable with M16 Thread
- 25080?M28-M16 Step Down Adaptor
- 25036?HDMI (D-C) cable in 190mm length?
- 17906?NA-502H Housing for SmallHD 502 Monitor
- 17920?NA-502B-H Housing for SmallHD 502 Bright Monitor
- 17923?NA-Shinobi-H Housing for Atomos Shinobi 5.2 4K HDMI Monitor with
HDMI 1.4 input
*25033.25036 are included in monitor housing
Vacuum and Leak Detector System Tutorial
