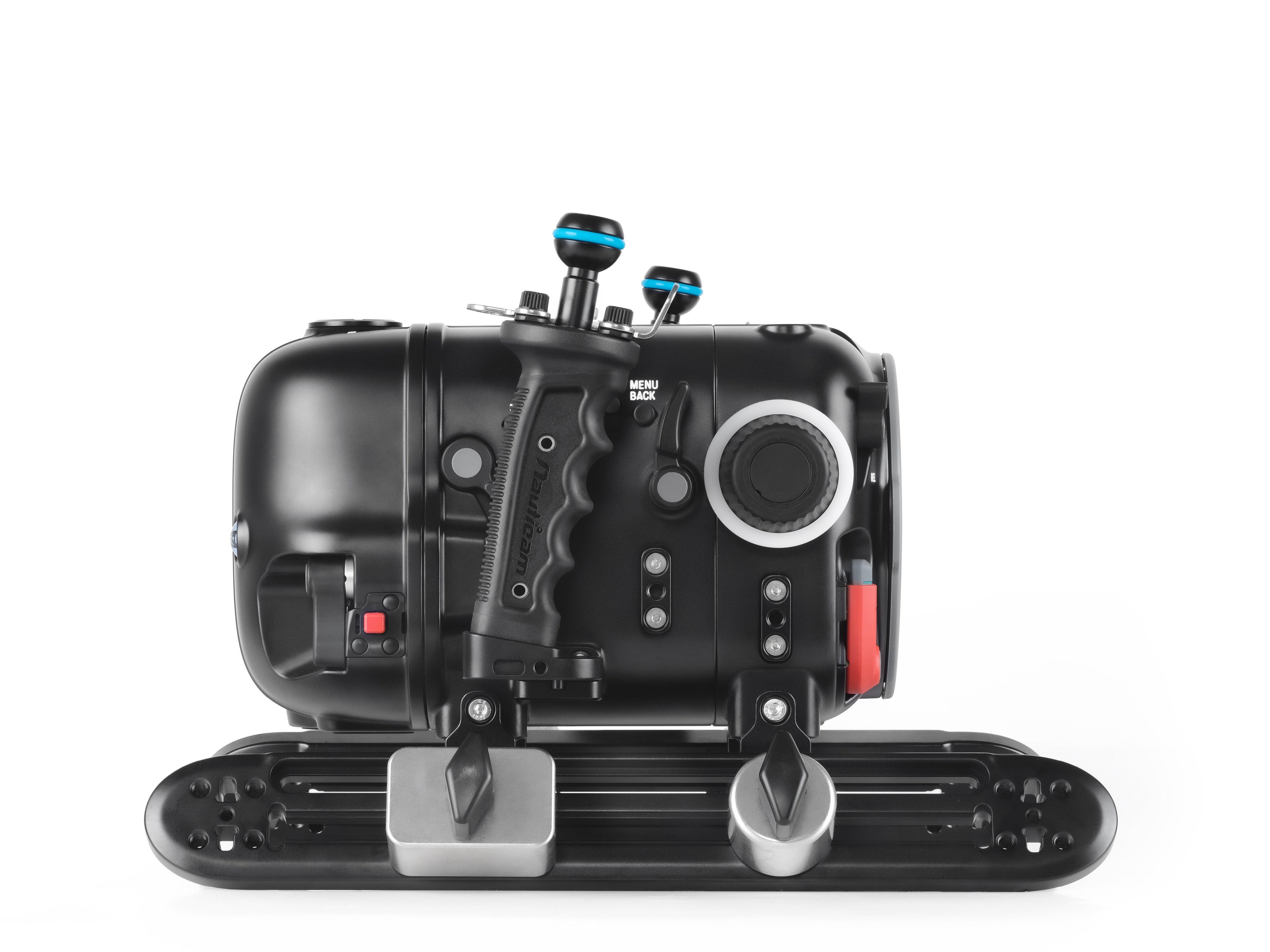

The Nauticam RED Komodo-X Underwater Housing
The Komodo-X housing follows in line with Nauticam's compact cinema lineup and now becomes the smallest and lightest underwater housing for RED. The usability of this system remains unmatched with a tool-less setup and tear down in minutes. Media and batteries can be swapped without ever removing the camera from the housing and lens changes can be achieved in seconds.
The Nauticam Komodo housing uses the N120 Cinema port system. shared with Nauticam's other N120 platform cameras which allows for easy transition to the Nauticam Komodo from other N120 Nauticam systems. The N120 system also provides access to Nauticam's line of professional premium optics such as the WACP-1/2 and SMC-1/2.
The housing also features adjustable handles with easy access to the cinema-style zoom and focus knobs. On top of the housing is a 1/4-20 cheese plate which allows for a wide variety of accessory mounting
Lens Support
The Komodo features a Canon RF lens mount. but currently RED is only offering support for Canon EF lenses. The Nauticam Komodo housing offers full support of the Canon EF to EOS R Adaptor along with the Canon EF to EOS R Adaptor with Variable ND Filter. The left side of the housing features an easily accessible command wheel for smooth ND changes. Once RED releases RF lens support. the Nauticam Komodo housing will be ready and fully compatible.
Monitor Support
For monitoring. the Nauticam housing does allow the Komodo's built-in monitor to be used for an extremely streamlined solution. Nauticam also offers a version of the Komodo housing which supports the Atomos Shinobi SDI monitor in the rear of the housing. For an external monitor solution. you can use any SDI-supported monitor housing from Nauticam.
SDI Output
Required accessories for SDI Cable System
- 25058 M16 SDI Bulkhead
- 25060 SDI Cable in 0.3m Length
Recommended monitor housing
- 17922S Nauticam Ninja V-S Housing for Atomos Ninja V 5'' with AtomX SDI Module. With the below items or 17926S SDI Cable Set
- 25060 SDI Cable in 0.4m length (SDI cable in 0.4m length for connection from camera to underside of SDI Bulkhead
- 25058 M16 SDI Bulkhead
- 25061 SDI Cable in 0.75m length (for connection between SDI Bulkheads)
- 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 camera monitor
- 17926S SDI Cable Set for use with NA-Ultra5
Camera Control over Ultra 5 Monitor
- 17926 Nauticam NA-Ultra5 Housing for SmallHD Ultra 5 Camera Monitor
- 16265R UW Camera Control Cable Bundle for NA-Ultra5 (with SDI. Ethernet. Power Cables in one for RED Raptor/L. incl. LEMO 4-pin to 9-pin adaptor cable)
Ethernet Remote Control
The Nauticam Komodo-X housing supports an ethernet surface feed in 5m (pole cam) and 45m (studio) lengths. Within the housing. there is space to install a small ethernet router which would allow for full control of the camera at the surface through the RedControl App.
Ethernet Surface Control
- 16261 Ethernet Surface Cable Set in 45m length (Incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)
- 16262 Replacement of Housing Lemo Bulkhead with Integrated Ethernet Cable
- 16263 Ethernet Surface Cable Set in 5 meter length (Incl. housing lemo bulkhead with integrated internal cable and external Duracell cables)
*USB-C to Ethernet adapter is required for use with 16261/3
What's In The Box:
- Komodo-X Housing
- 25625 M16 Vacuum Valve II pre-installed
- 90120 Housing O-ring. lubricant. O-ring remover
- 2x Handles with mounting balls
- Monitor Shade (only included with Shinobi monitor back)
- CR2032 Battery (for moisture alarm and vacuum system)
- Allen Wrench Set
- Housing Skids
- Wheeled Case with Custom foam insert
- 2x 0.25Kg Trim Weights
- 2x 0.5Kg Trim Weights
Recommended Accessories:
- 17959 Housing Mounting Ball with 1/4'' Screws
- 16701 Top Handle for E2/F/C70/BMPCC/KOMODO
- 25221 M10 Strobe Mounting Ball for Housing
- 16232 0.25kg Trim Weights for 16227
- 16233 0.5kg Trim Weights for 16227
- 17926S SDI Cable Set for use with NA-Ultra5
- 16410 N120 to N200 Port Adaptor for Epic/Weapon LT Housings
- 25625 M16 Vacuum Valve II (Pushbutton Release)
Compatible Batteries:
- REDVOLT NANO 45Wh
- REDVOLT Micro-V 98Wh
- Anton Bauer Titon Micro 90 V-Mount 45Wh/98Wh
- Bebob V-MICRO 45Wh/98Wh
- Core SWX NANO Micro 98Wh Lithium-Ion Battery (V-Mount)
- Fxlion NANO ONE/TWO Ultracompart 50Wh/98Wh
- Hawk-Woods Mini V-Lok 14.4V 98Wh Li-Ion Battery
- IDX System Technology Imicro-150 14.5V 97Wh Li-Ion Vmount Battery
- SWIT PB-M98S 14.4V 98Wh Pocket Battery with D-Tap and USB Output (V-Mount)
- SmallRig VB50/99 Mini V-Mount Battery
