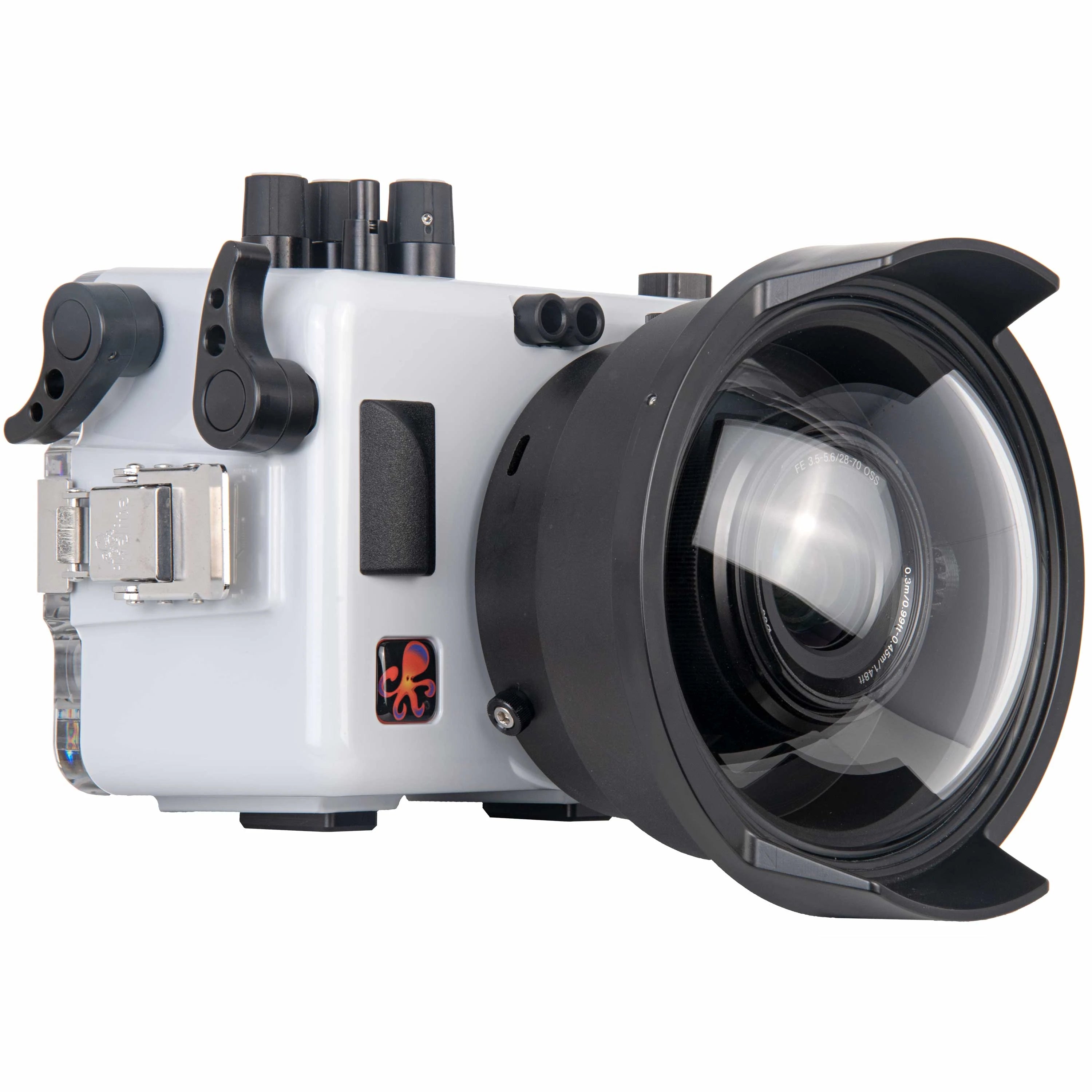

Advantages of the Ikelite Housing
- 200 ft (60m) depth rating
- Extendable shutter release lever
- Extendable AF/MF button thumb lever for back button focus
- Interchangeable Dry Lock Micro port system including flat ports. 6dome ports. and 8 dome ports
- Corrosion-proof ABS-PC construction
- Clear view back with laser engraved control markings
- Ergonomic. field serviceable direct-drive controls
- Accessory ports for optional vacuum system and TTL converter
- Supports LCD tilt
- Made in the USA
Ergonomics and handling
Good ergonomics are critical when you need to concentrate on composition. focus. and proper exposure. Large. curved control levers put the most important controls right where you need them: shutter and autofocus (via the AF/MF button). This combination allows you to shoot with or without back button focus. an advanced technique that is useful for tack sharp focus of super macro and fast moving subjects. Each lever can be extended using the optional Shutter Trigger Extension # 4077.95 for perfect spacing when using a right-hand handle.
The control dial. rear control wheel. mode dial. power. and lens release controls are all operated intuitively via premium soft-touch knobs. Stainless steel. direct-drive rotating controls are virtually fail-safe and user serviceable and adjustable in a pinch.
All rear camera buttons are accessible by smooth action. hard anodized aluminum push buttons for reliable performance and easy maintenance. These controls are clearly labeled by laser engraving on the back of the housing that never fades or falls off.
Two 1/4-20 threaded mounting points are included on the bottom of the housing for simple. rotation-free attachment of a tray and handle system. Handles provide improved ergonomics underwater and are the foundation for your lighting mounts. The Tray with Dual Quick Release Handles # 9523.64 is the most popular choice for both handling and attachment of accessories.
Set-Up
The camera mount is front-loading for easy installation and removal. A small mounting plate attaches to the bottom of the camera and secures in the front of the housing. The camera mounting plate does not need to be removed from the camera for surface use or when changing the battery or memory cards. The mounting plate features a 1/4-20 threaded mount on the bottom so that it can be attached to a tripod on the surface.
Confidence
The unique rear seal design prevents accidental twisting or stretching of the o-ring for simple and confident assembly. We have eliminated the need for an o-ring groove or channel which can trap sand. dirt. or debris. Two double-passivated stainless steel locking lid snaps are simple to use and virtually unbreakable. The clear back allows you to see the o-ring form a solid. watertight seal as it closes.
Vacuum Testing
A spare 1/2-20 threaded accessory port is provided on the side of the housing for easily installation of the optional Vacuum Kit # 47012. A vacuum kit allows you to draw a vacuum on the housing to check for leaks prior to entering the water.
Drawing a vacuum on the system also provides extra security at the surface of the water. especially important when using the housing in rough surf.
