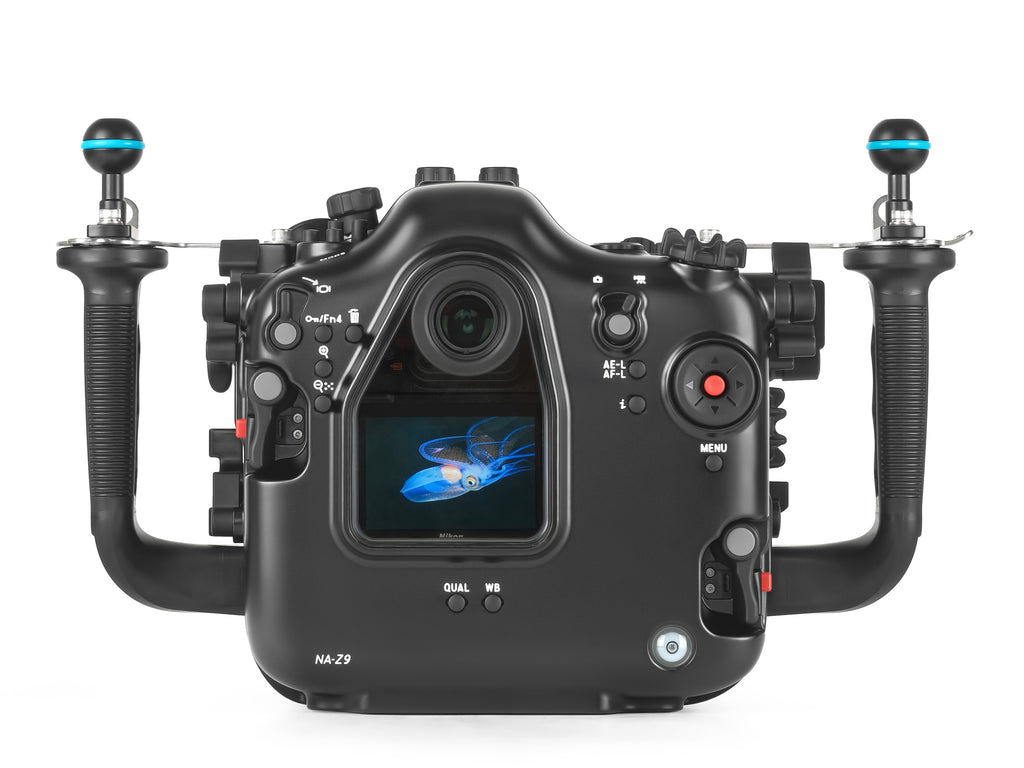

The Nauticam NA-Z9 Underwater Camera Housing
The Nauticam NA-Z9 brings embodies the experience gained by producing professional housings for Nikon's flagship DSLR and mirrorless cameras. blending them to create the most intuitive underwater imaging platform available.
F and Z Mount Compatible
The NA-Z9 uses the N120 Port System for Z-Mount full-frame lenses. When using F-mount lenses. the FTZ adapter is inside the housing which allows for the same port configuration as is found on an F-mount DSLR system such as the NA-D6 or NA-D850. Convenient lens release buttons on the housing for both F and Z mount makes lens changes a snap regardless of platform without having to remove the camera from the housing; only when installing or removing the FTZ adapter.
Mission Control
Essential control are placed within easy reach of the ergonomic handles and easy setup means more time in the water and less time working on your rig. Within easy reach of the ergonomic left handle are finger-actuated levers for the customizable 'Fn1' and 'Fn2' buttons as well as the AF-Mode button. A double thumb lever triggers the PLAYBACK and DISP buttons. On the right side is a double thumb lever for the AF-ON and REC control as well as recessed lever for ISO and a forward placed lever for the 'Fn1' button.
HDMI Output
As a true hybrid shooting platform the NA-Z9 is just as comfortable being outfitted to capture video as stills. External monitors and recorders can easily be connected via the large M24 bulkhead which supports both HDMI 1.4 and HDMI 2.0 connections.
Premium Professional Optics
The NA-Z9 is built around the extensive N120 Port System that supports a wide range of F-Mount and Z-Mount lenses with a variety of acrylic and optical-glass port options. In addition to standard ports. Nauticam's premium professional water-contact optics deliver the highest possible underwater image quality. The WACP-2. when used with the Nikon Z 14-24mm lenses provides a stunning rectilinear 140o field-of-view and full zoom-through capability with an incredibly natural looking image when compared to a standard rectilinear lens and dome port combination.
Recommended Accessories
- 25218 Mounting Ball Set for Tripod (for NA-A9/A7RIII/BMPCC/XT3)
- 25625 M16 Vacuum Valve II (Pushbutton Release)
- 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
- 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
- 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
- 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
- 26308 TTL Converter for Nikon?
- 26216 Universal Optical Fiber Cable
- 25081 M24-M16 Step Down Adaptor
- 26074 M14 Nikonos 5-pin Bulkhead with Micro Connector for Nikon TTL Converter
- 26075 M14 Ikelite Style Bulkhead with Micro Connector for Nikon TTL Converter
- 25011 Set of spacers and long screws (for increasing handle distance)
- 28130 Hand Strap for 28113 (For NA-1DXII/1DXIII/D500/D5/80D/A9/R5)
- 17959 Housing Mounting Ball with 1/4'' Screws
- 90222 Housing O-ring (I.D.=220mm. C.S.=4.0mm)
HDMI Output
Required for HDMI 2.0 System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-a1 to use with Ninja V housing)
Compatible Monitor Housings
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5 4Kp60 4:2:2 1 0-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
Required for HDMI 1.4 System
- 25033 Standard HDMI bulkhead with M16 thread*
- 25081 M24-M16 Step Down Adaptor
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1 (for connection from HDMI bulkhead to camera)
*25033 included in below monitor housings
Compatible Monitor Housings
- 17920 NA-502B-H Housing for SmallHD 502 Bright Monitor
- 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2 4K HDMI Monitor
- 17925 NA-503-H Housing for SmallHD 503 UltraBright On-Camera Monitor
Compatible?Monitor Mounting System
- 17951 Nauticam Atomos Shogun housing mounting system
- 17954 Tripod plate for NA-A7S and NA-GH4
- 17957 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-S1R/S1H/BMPCC/E2F/R3/Z9(SN from A439736)
- 17960 Universal Quadra-Pod Plate for Nauticam Housings
Ethernet System Accessories
Required for Ethernet Surface Control
- 16281 Housing Lemo Bulkhead with Integrated Ethernet Cable
- 16282 Nauticam Ethernet Surface Cable in 45 meter length
- 16283 Nauticam Ethernet Surface Cable in 5 meter length
