* Compatible with the Atomos Ninja V. V+. 5.2. Ultra

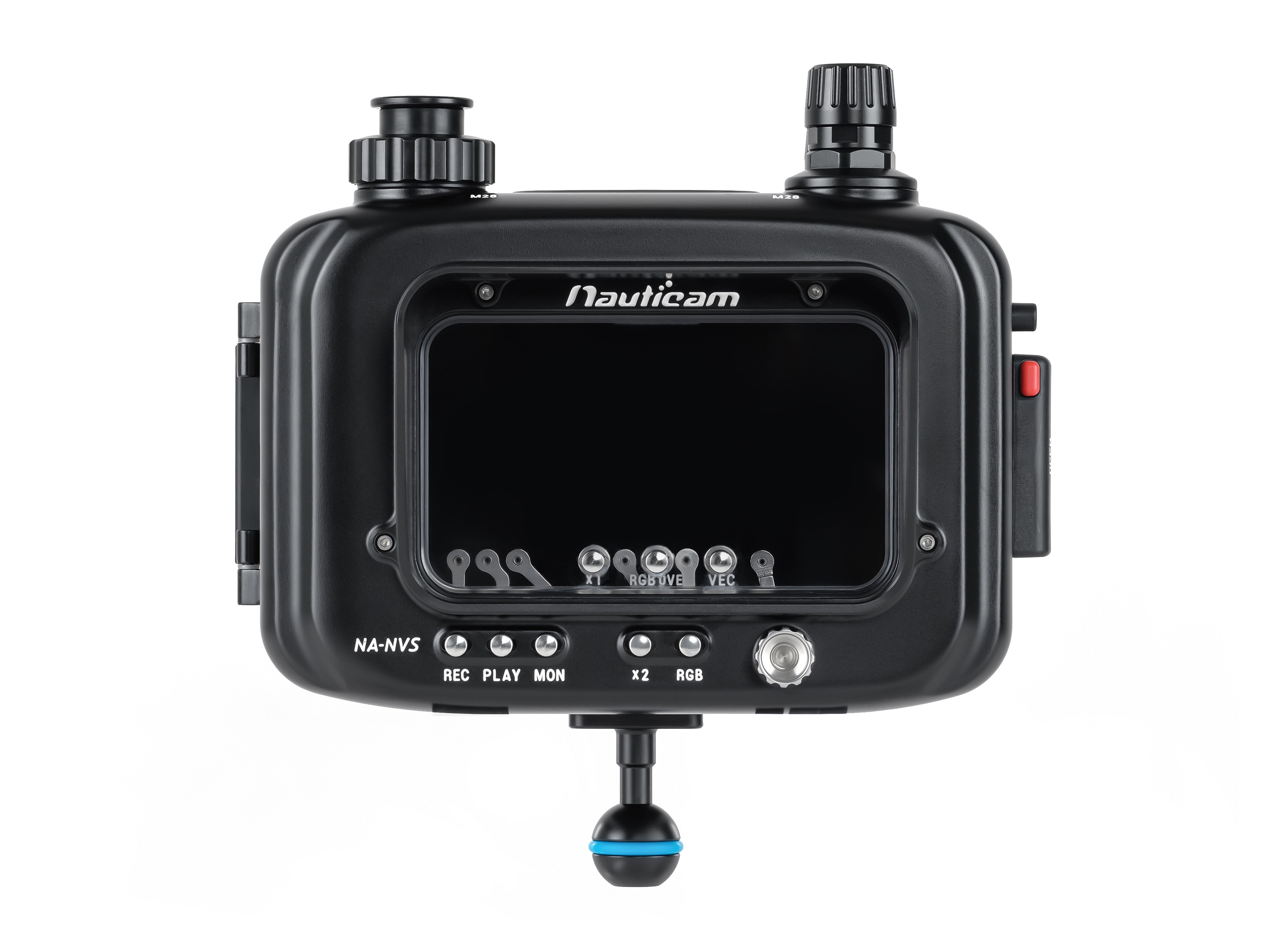

The Nauticam NA-Ninja V-S Underwater Housing for Ninja V and Ninja V+
The Nauticam NA-Ninja V-S builds on the strong foundation Nauticam has built with previous Atomos monitor/recorder housings but is built around the new M28 large-bore bulkhead. The M28 on the 'S' housing supports both HDMI 2.0 and?SDI via?the AtomX SDI Module. The module allows for an SDI connection to the monitor or for providing HDMI-SDI cross conversion.?
Setup

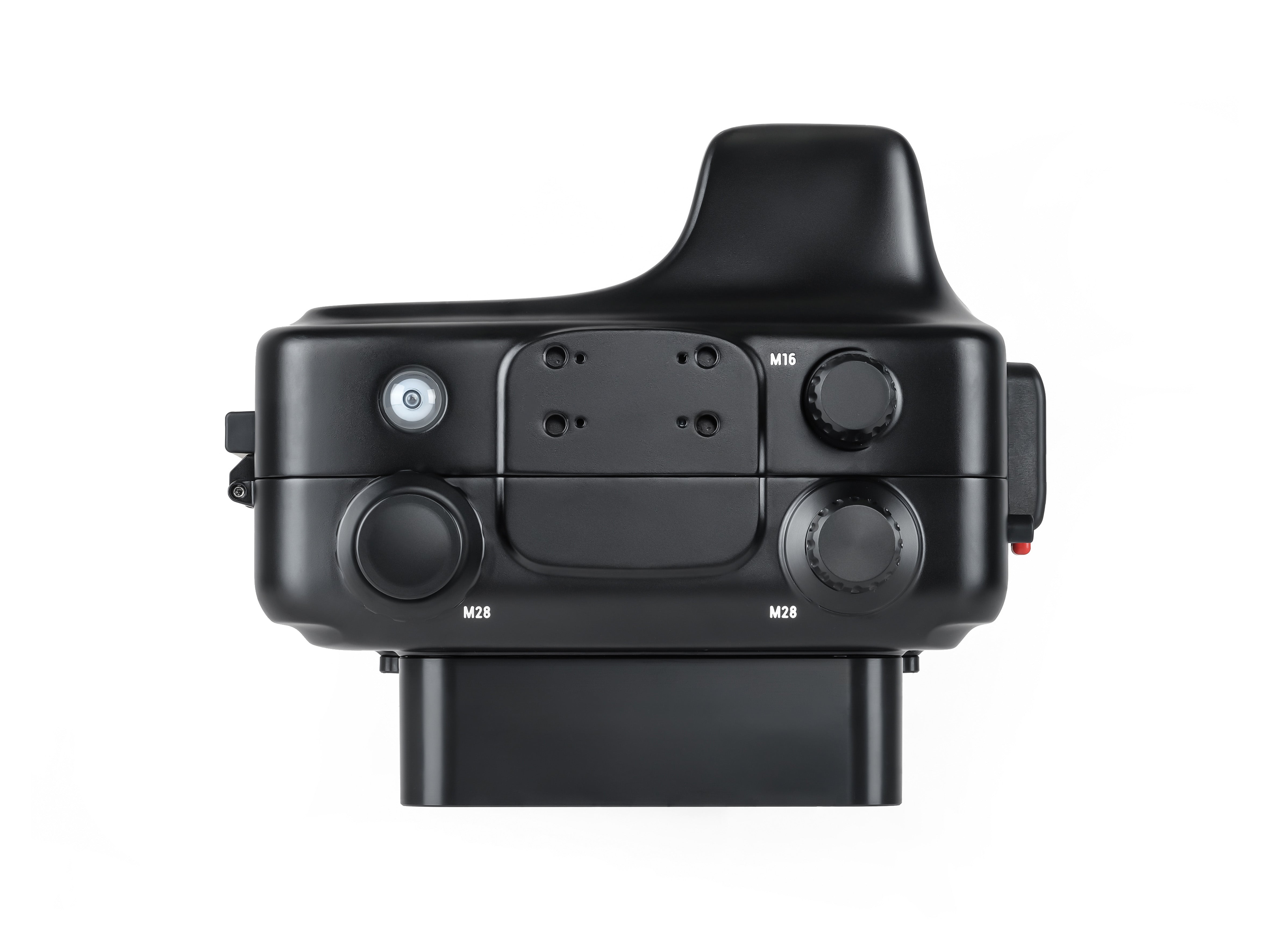

The Ninja V is easily mounted in the housing. dropping in without trays or other mounting accessories and is held in place by two rotating locking levers. The Ninja V with the AtomX SDI Module features both HDMI 2.0 and SDI inputs as well as an HDMI or SDI output and the NA-Ninja V-S supports both. With dual M28 bulkheads. a second HDMI or SDI cable can be run to another monitor. The Ninja V allows for the application of. cube format 3D LUTs to this output signal.
Battery and Vacuum System
The NA-Ninja V-S supports up to the NP-F970 size battery which provides up to 130 minutes of run time (105 minutes with SDI module) when recording 4K60p footage. A CR-2032 battery powers the vacuum check and leak detection system. When used with the included Vacuum Valve. the system gives real-time feedback about the watertight integrity of the housing through an easily visible multi-color LED on the top of the housing.
Control Access
Access to the touchscreen controls of the Ninja V are handled via a series of buttons and a selector knob beneath the screen of the housing including PLAY. REC. MON. RGB. PEAK and the Muti-Selector Lever.
resources
* Requires?Atomos AtomX SSDmini solid state drives
Nauticam Atomos monitor housing mounting option
What's In The Box:
- NA-Ninja V-S Housing
- Monitor Hood
- M16 Vacuum Valve II (pre-installed) PN 25625
- M16 SDI Bulkhead (pre-installed) PN25058
- M28 to M16 Step Down Adapter? ?(pre-installed)?PN25080
- Internal SDI Cable PN25060
- M28 HDMI 2.0 Adapter? ?(pre-installed)?PN25089
- Mounting Ball
- Spare silicone rubber main o-ring PN 90137
- O-ring removal tool and lubricant
- CR2032 battery
- Allen Wrench Set
Recommended Accessories for HDMI:
- 25077 HDMI 2.0 Cable for NA-XT3 Housing
- 25078 HDMI 2.0 Cable for NA-BMPCCII/S1R Housing
- 25079 HDMI 2.0 Cable for NA-GH5V Housing
- 25082 HDMI 1.4 Cable for HDMI Bulkhead
?Recommended Accessories for SDI Input:
- AtomX SDI Module require for SDI input and output
- 25058 M16 SDI Bulkhead
- 25060 SDI Cable in 0.4m Length
- 25061?SDI Cable in 0.75m Length ~For Connection Between SDI Bulkheads
Recommended Accessories for SDI Output:
- 25064 15m SDI Surface Cable
- 25065 45m SDI Surface Cable
